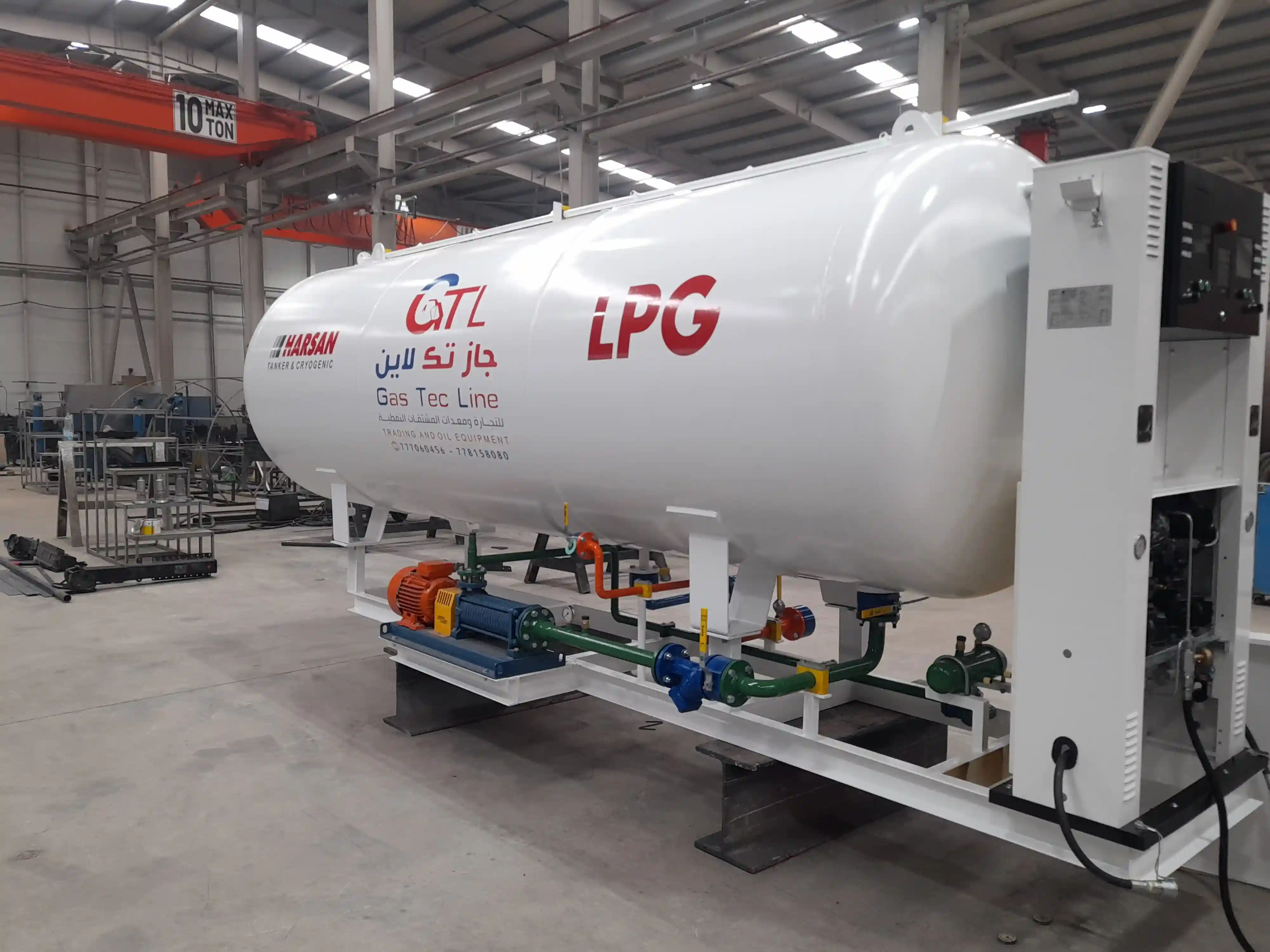

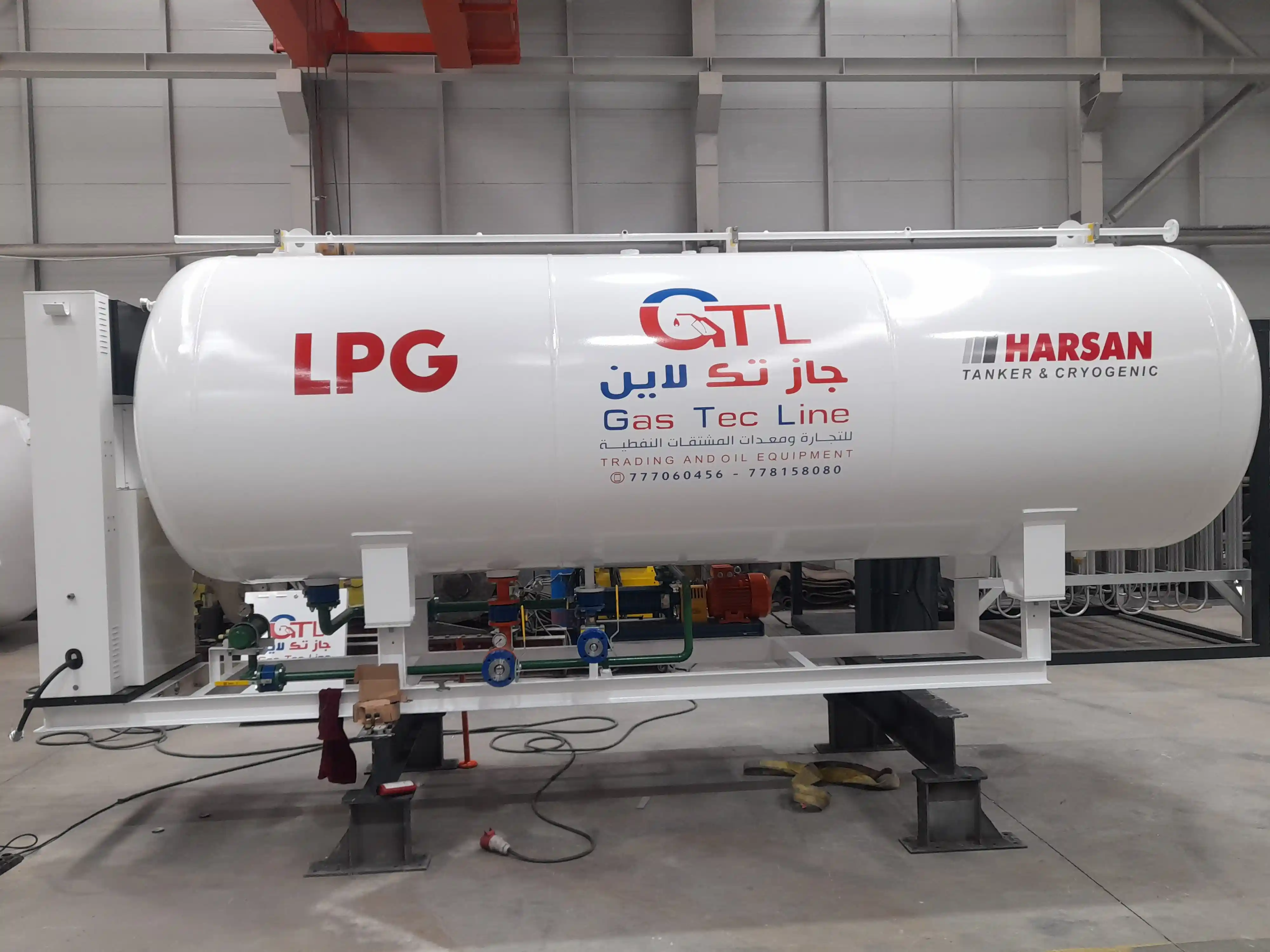

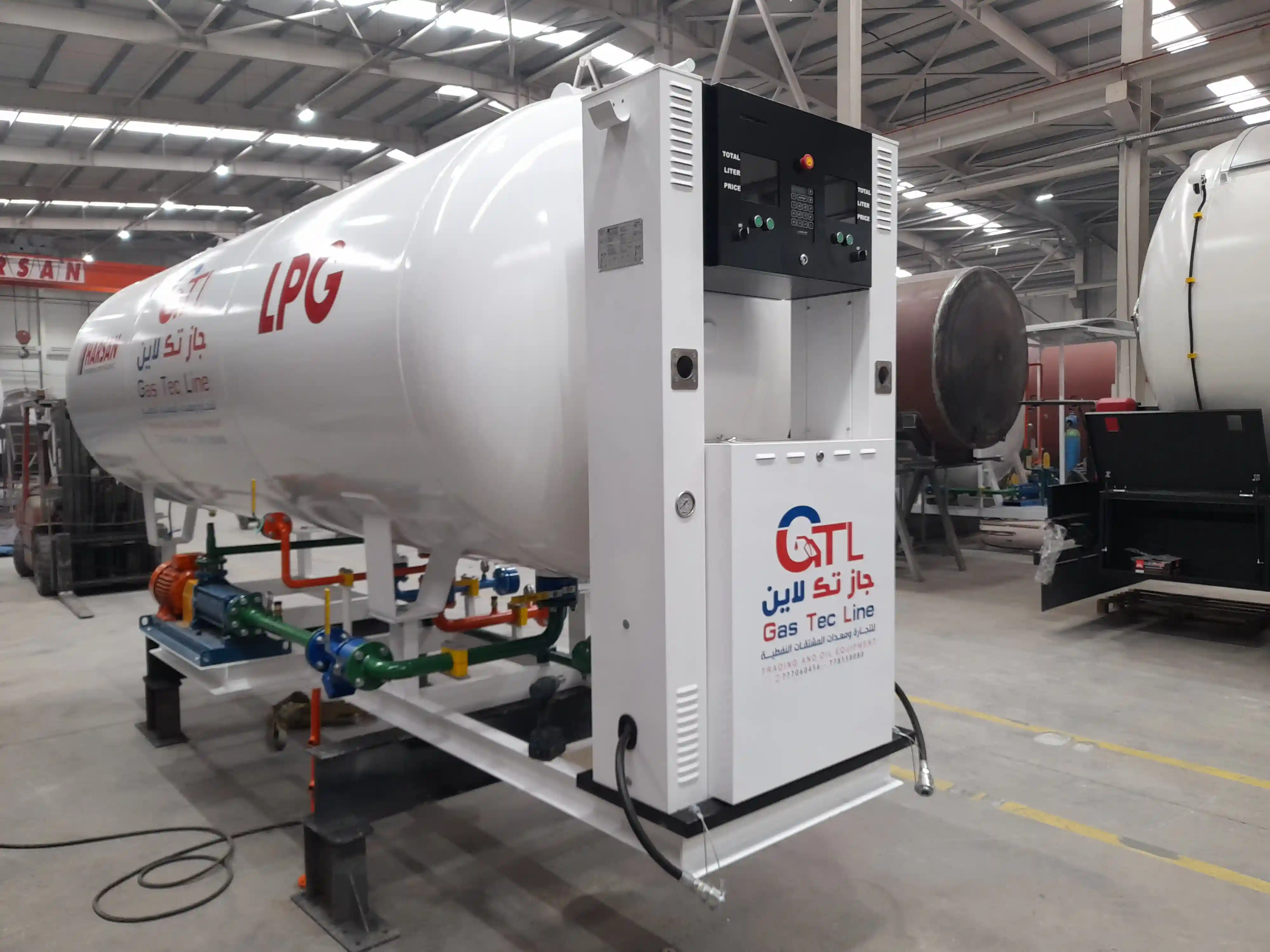

LPG Skid Dispenser System

LPG Skid Dispenser System

FEATURES OF HARSAN TANKS
Ready to use. Just connect the power line and turn on the switch.
• It is very easy to use.
• Includes all necessary equipment, items and connections.
• Can be moved everywhere.
• All electrical accessories are ex-proof.
• The equipment and machines conform to EU standards and are CE or AD2000 certified.
• Tank is designed with cylindrical section and designed with the most durable and safest combination.
• Our tanks use special high strength, fine grained, normalized “P” series pressure vessel steel in accordance with EN 10028-3. The mechanical and metallurgical properties of the steel are tested and verified.
• An elliptical dished head end is used in tank heads with stress relieving according to standards.
• Manufacturing and quality processes are carried out under the supervision of an independent inspection body, in accordance with standards and procedures, by a qualified, experienced engineer.
• Welding is done by certified welders in accordance with standards and materials.
• Certified NDT personnel international competence making in testing and controlling all welded joints.
• Once installed, all tanks are subjected to a hydrostatic pressure test. After this test, the connections of the tank accessories are tested with air against leaks.
• Outer surfaces of the tank are sandblasted at SA quality 2.5 before painting.
• Provide the best product to the customers by using corrosion resistant, long lasting, high quality two component paint products of paint companies which have proven internationally for dyeing.

Technical Specs
• Tank Capacity: between 1 m³ and 100 m³
• Tank Class: Class 2 (Gas)
• Products to be stored: UN 1965 – Hydrocarbon gas mixture
• UN 1978 – Propane
• UN 1011 – Butane
• UN 1075 – Fuel- oil gas, liquefied
• Operating Temperature: between – 30 ‘C and +70 ‘C
• Design Standard: EN 12542, EN 13445/ PED, CE BRAND, AD2000 Merkblatter, ASME U or U2 stamp, CODAP or BS 5500.
• Plug and Play.

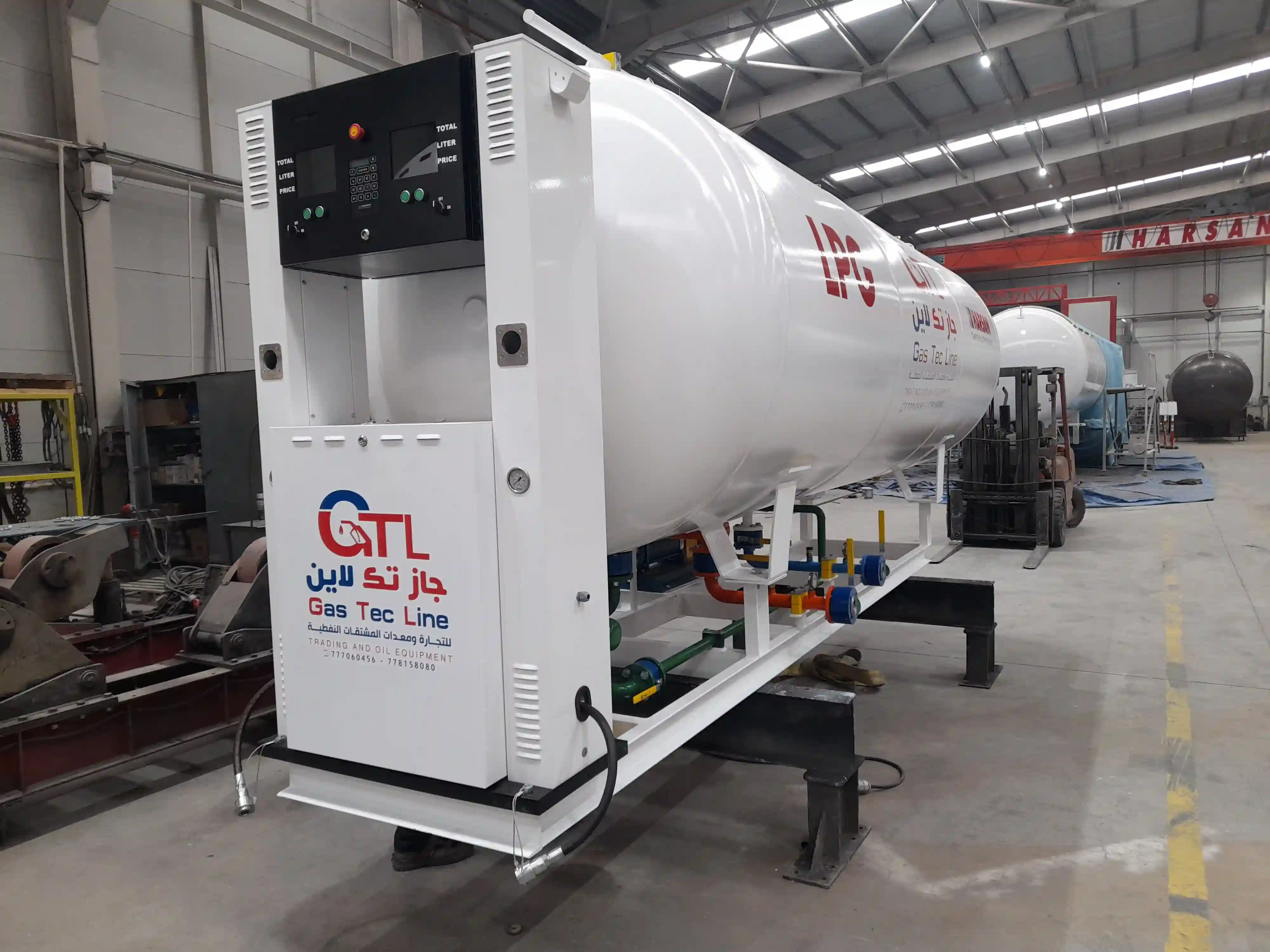

• Digital Dispenser with the option of different quantities for filling guns.
• Suitable for LPG converted vehicles and LPG cylinders.
• Ex-Proof Electronic equipment.
• Portable.
• Equipment in accordance with CE standards.
• Safety Systems (Emergency Shut Off, Gas Detector, Siren, Lamp).
• Tank Standards (CE, AD2000, ASME, PED).
• Leakage Test, Radiographic Test, and Ultrasonic Tests on the tank.
• Can be designed in sizes ranging from 5m³ to 100m³.
• Fully customizable.

GENERAL FEATURES
• Design Standart: AD 2000 Merkblatter
• Design & Test Pressure : 17,2 bar & 24,6 bar
• Design Pressure: -20°C / + 50°C
• Filling Gun/Nozzle :1 pc, 2 pcs or 4 pcs
• Flow Capacity: Minimum : 5 lit/min Maximum : 50 lit/min
• Ex. Proof Lamp, Gas Sensor, Lighted Siren,

TANK DETAIL
• Mechanical parts will be • under warranty during 1 year against production defects.
• Tank Body Type: Horizontal and Cylindrical Dished Ends Type: Ellipsoidal
• Material Confirm to AD 2000.
• EN 9606-1 and ISO14732 Certified welder and welding operators according to their standards Welding materials conforming to EN ISO 14171 and 14341.
• Shell and Caps Welding: SAW or SMAW + SAW
• Nozzle Welding’ : GTAW or SMAW
• Sand blasting according to SIS 05 5900 in SA 2.5 degree.
• One layer shop primer anti-corrosion.
• One layer epoxy primer. One layer final acrylic paint.
• Radiographic or ultrasonic examination.
• A third party authorized by hydrostatic testing at 24.6 bar.
• All system checked.

CERTIFICATES & DOCUMENTS
• ISO 9001-2015 * HARSAN Certificate of Quality Management System
• ISO 3834-2* HARSAN Certificate of Conformity to Resource Quality Requirements
• EN 10204 / 3.1 *Certificate of Pressure Vessel Material
• Certificate of Ultrasonic or Radiographic Inspection Report.
• Certificate of Hydrostatic Test.
• EN 9606-1 * Certificate of Welding
• ISO14732 * Certificate of Welding Operator
• Certificate of Accessories
• Instruction Book
